| Brand Name : | FEIDIAO |
| Certification : | CE, ISO |
| Model Number : | GCL-C |
| Price : | negotiation |
| Delivery Time : | 40days |
| Payment Terms : | T/T or L/C |
| Supply Ability : | 50000 |

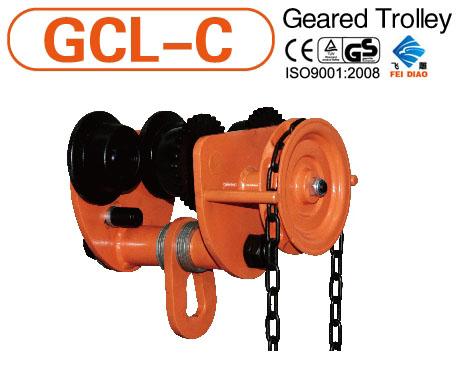

GCL-C Specifications
1) Capacity from 0.5T to 10TModel | GCL-0.5C | GCL-1C | GCL-1.5C | GCL-2C | GCL-3C | GCL-5C | GCL-10C | |
t Capacity load | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
m Standard lift | 2.5 | |||||||
t Test load | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 12.5 | |
mm Dimensions | A | 270 | 278 | 310 | 310 | 360 | 400 | 440 |
B | 168 | 200 | 220 | 240 | 270 | 324 | 380 | |
C | 173 | 208 | 240 | 252 | 305 | 368 | 490 | |
H | 105 | 135 | 140 | 164 | 195 | 232 | 275 | |
F | 2-3 | |||||||
mm I-beam width range | M | 75-125 | 100-150 | 125-175 | 125-180 | |||
kg Net weight | 12 | 15 | 18 | 19 | 35 | 53 | 100 | |
|
|
